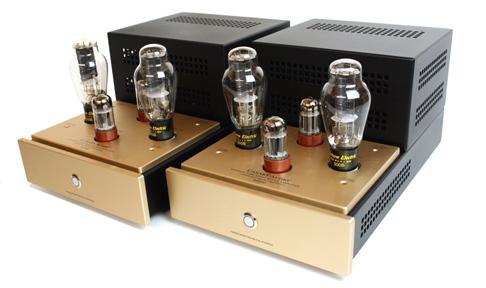

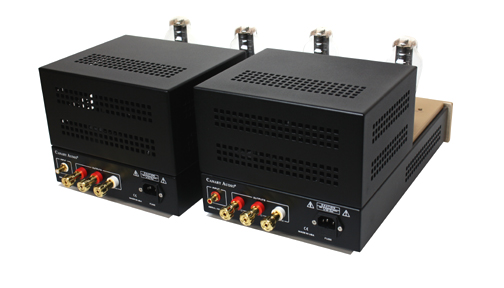

M330 Monoblock Amplifiers
|
| |
|
Built around 300B Triode Tubes: |
| |
The M330 is a class A triode mode, push-pull monoblock power amplifiers with the use of two matched 300B
triode tubes per channel. It features an advance circuitry that guarantees a deeper bass tones and crisper treble.
The M330 is capable to deliver 26 watts of power per channel. This is achieved by the use of a massive, custom-built
power and output transformer specially designed by our engineers.
Like all other Canary products, the M330 is 100% handcrafted in California with the use of finest parts and
components. When you listen to the M330, you just might not think of them as amplifiers at all. Those who have
listened closely say that it sounds like music, not like an amp. Only the glow of those matched 300B will let you
know otherwise. It's that simple.
|
| |
| Image Gallery
|
|
SPECIFICATIONS
|
|
Rated Power Output: |
26 Watts RMS |
|
Input Sensitivity: |
0.72 Volts for full output |
|
Input Impedance: |
150,000 Ohms |
|
Frequency Response: |
+/- 1dB from 10 Hz to 70,000 Hz |
|
Total Harmonic Distortion: |
< 0.4% |
|
Signal-to-Noise Ratio: |
-83 dB below 1 Watt |
|
Damping Factor: |
12 |
|
Power Consumption: |
240 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per monoblock): |
2 x 300B
2 x 6SN7
|
|
Dimensions (per monoblock): |
10" W x 17.5" D x 8" H |
|
Net Weight (per monoblock): |
35 lbs. |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
