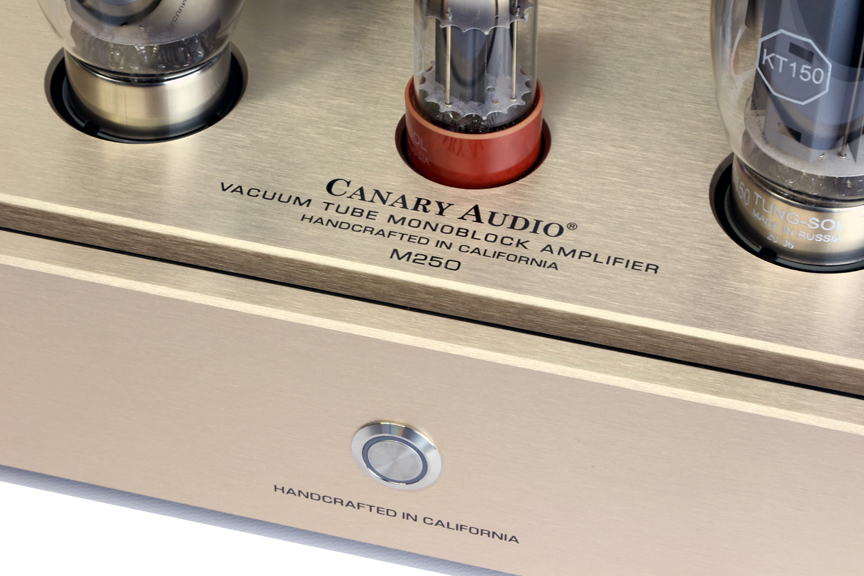

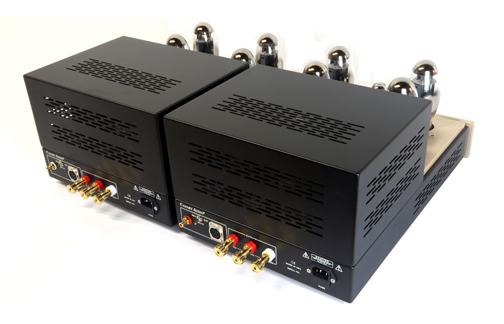

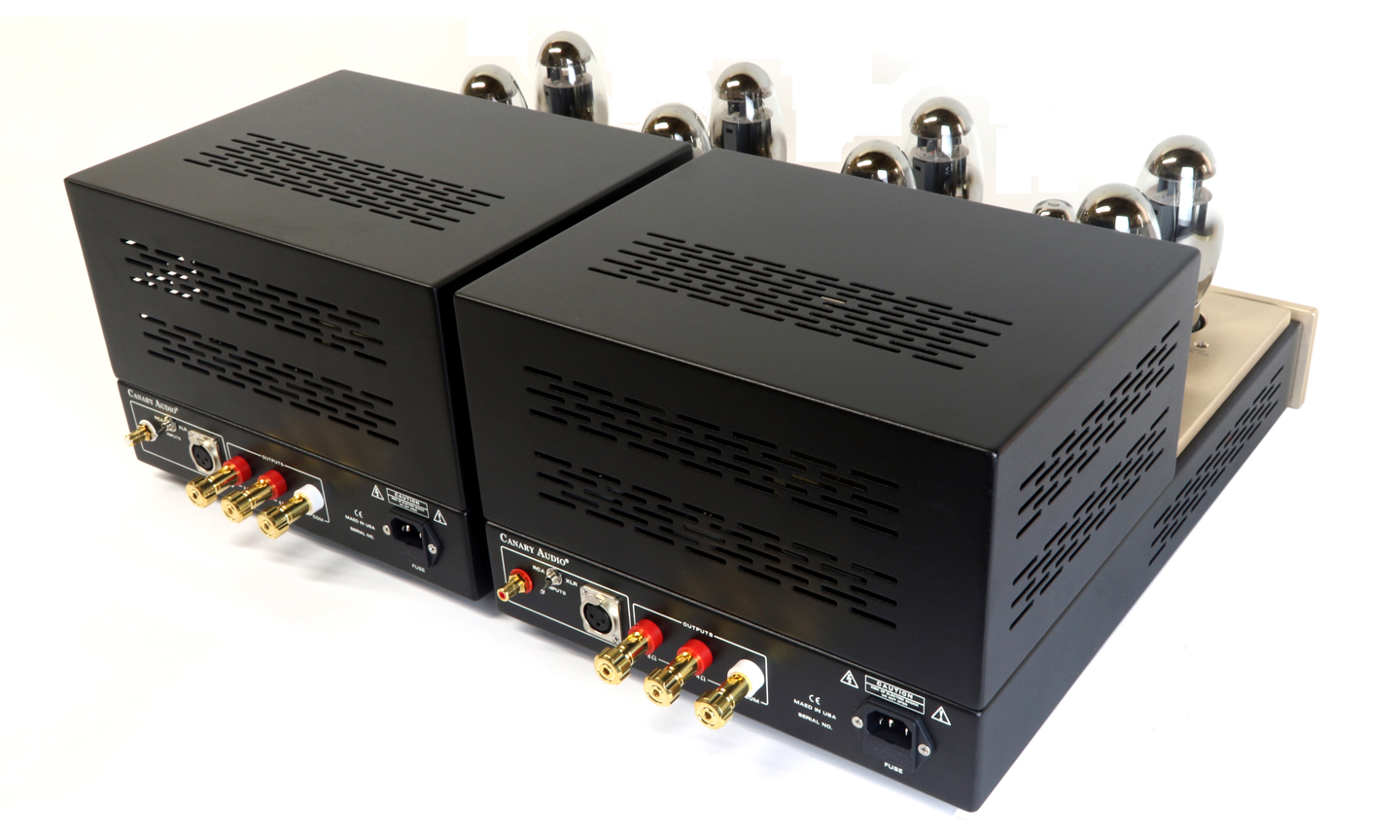

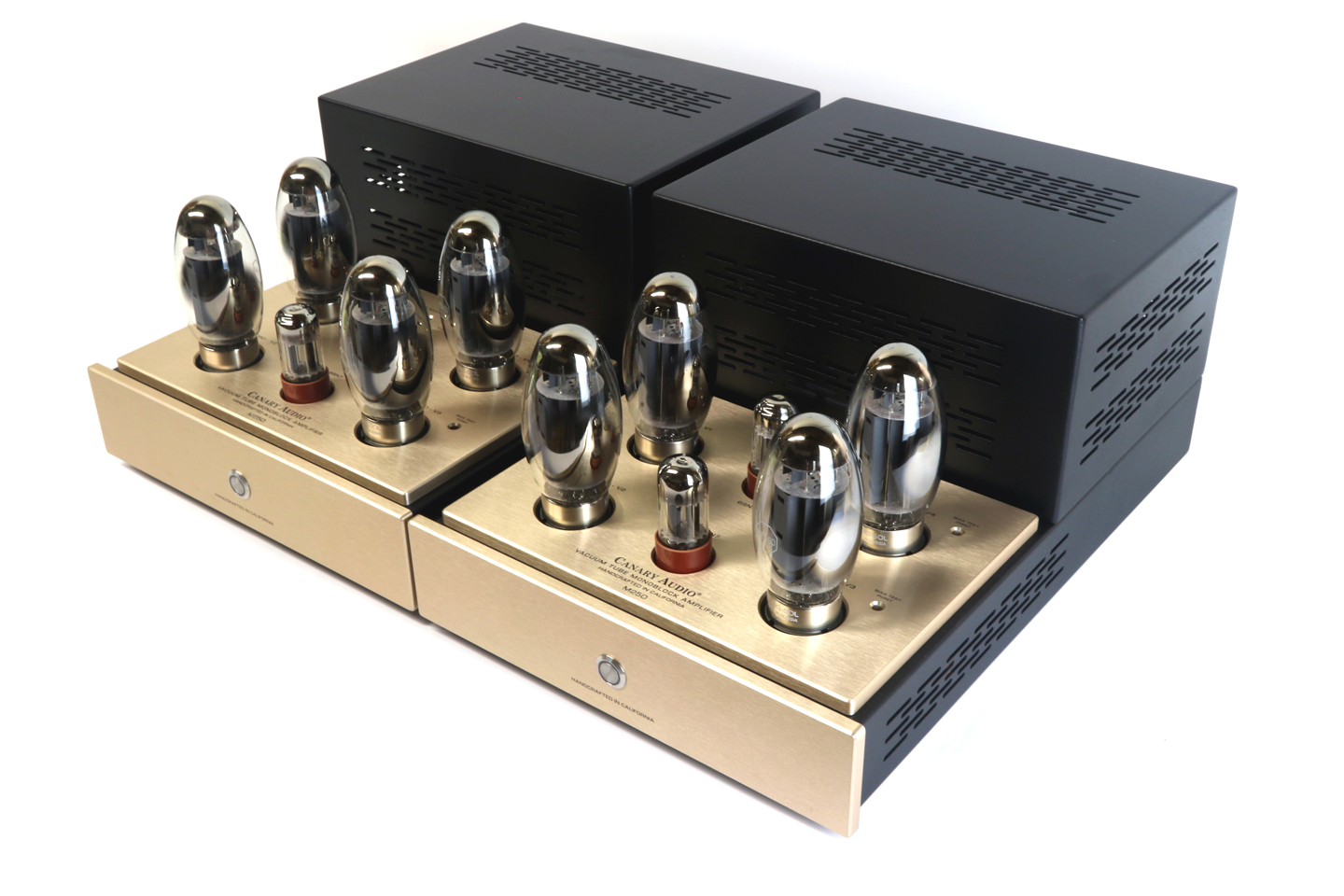

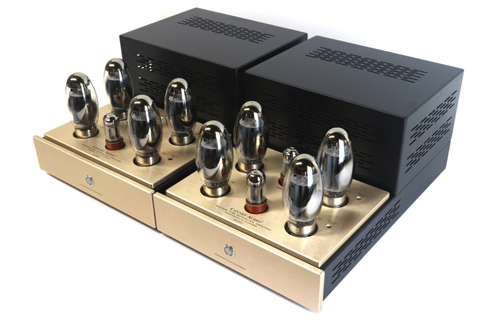

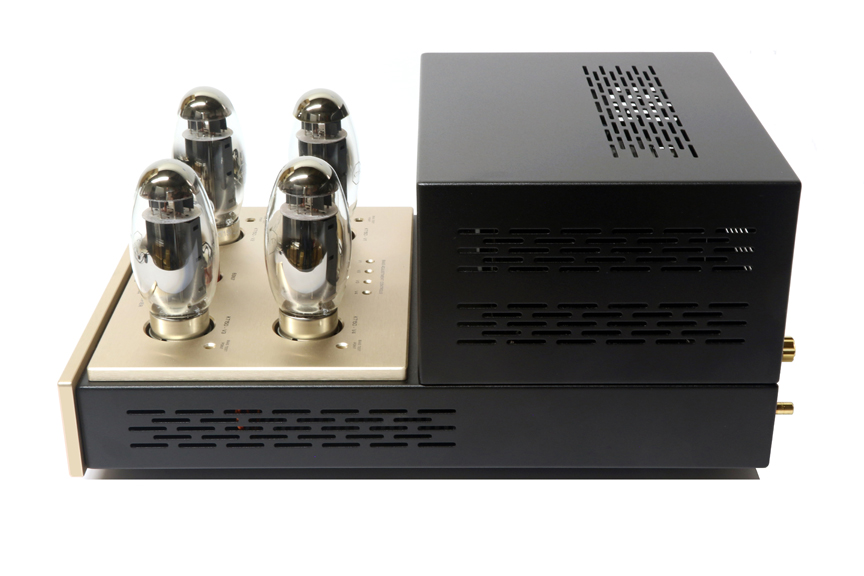

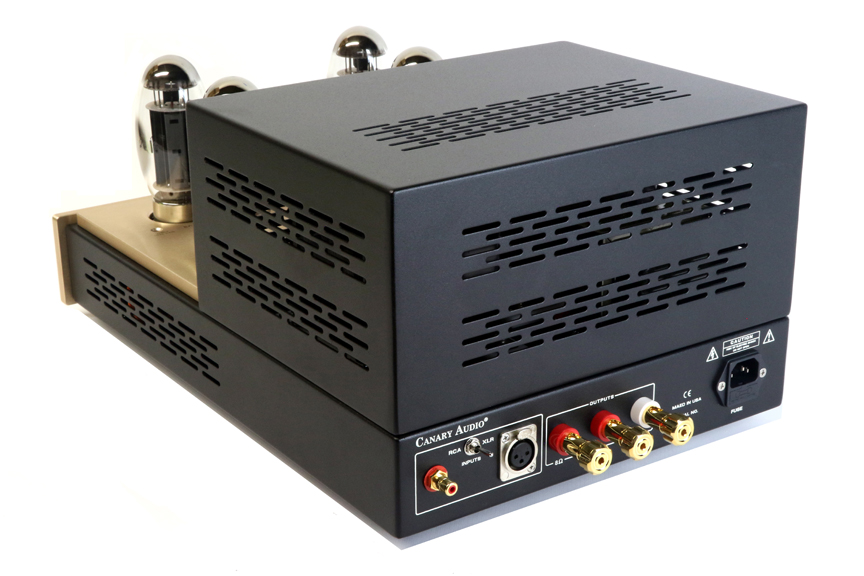

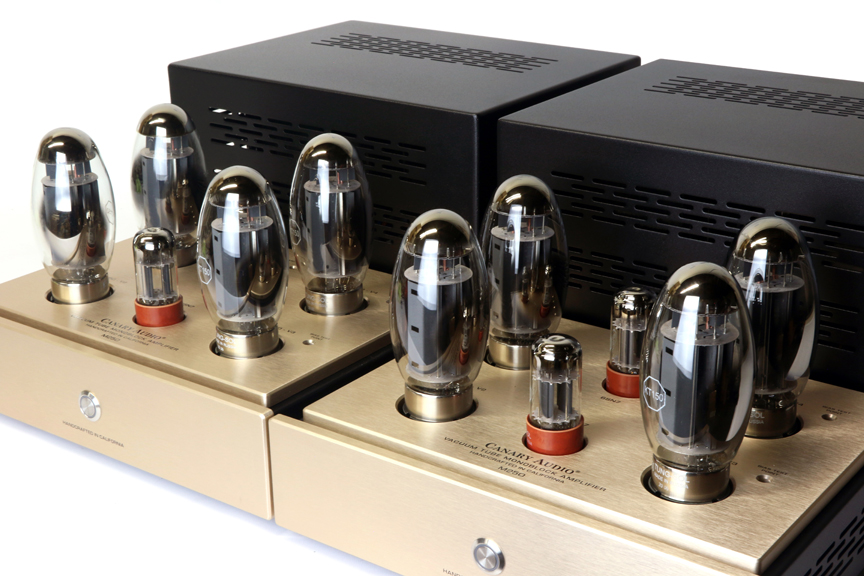

M250 Monoblock Amplifiers
|
| |
|
The Powerful Canary: |
| |
The M250 is a class A ultra-linear monoblock power amplifiers with the use of four (two matched pairs) KT150 tubes per channel. KT150
is the most powerful octal beam tetrode ever produced so therefore, the M250 is capable to deliver 250 watts of power per
channel. This is achieved by the use of a massive, custom-built power and output transformer specially designed by our
engineers.
Like all other Canary products, the M250 is 100% handcrafted in California with the use of finest parts and components. The M250 also offers a
balanced input with the use of the Jensen Line Input Transformer. A true balanced input, not just a XLR connector with single-ended connection.
With the high output power rating, the M250 will drive even the most difficult loudspeakers. The M250 is truly an amp that
can sing and it sings loudly.
|
| |
|
SPECIFICATIONS
|
|
Rated Power Output: |
250 Watts RMS |
|
Input Sensitivity: |
0.75 Volts for full output |
|
Input Impedance: |
150,000 Ohms |
|
Frequency Response: |
+/- 1dB from 10 Hz to 120,000 Hz |
|
Total Harmonic Distortion: |
< 0.2% |
|
Signal-to-Noise Ratio: |
-95 dB below 1 Watt |
|
Damping Factor: |
26 |
|
Power Consumption: |
360 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per monoblock): |
4 x KT150
2 x 6SN7
|
|
Dimensions (per monoblock): |
12.5" W x 20" D x 8.25" H |
|
Net Weight (per monoblock): |
70 lbs. |
|
Specifications subject to change without notice. |
|
