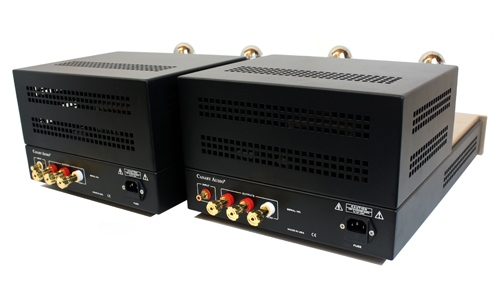

M120 Monoblock Amplifiers
|
| |
|
The Powerful Canary: |
| |
The M120 is a class A ultra-linear monoblock power amplifiers with the use of two matched KT150 tubes per channel. KT150
is the most powerful octal beam tetrode ever produced so therefore, the M120 is capable to deliver 100 watts of power per
channel. This is achieved by the use of a massive, custom-built power and output transformer specially designed by our
engineers.
Like all other Canary products, the M120 is 100% handcrafted in California with the use of finest parts and components.
With the high output power rating, the M120 will drive even the most difficult loudspeakers. The M120 is truly an amp that
can sing and it sings loudly.
|
| |
| Image Gallery
|
|
SPECIFICATIONS
|
|
Rated Power Output: |
100 Watts RMS |
|
Input Sensitivity: |
0.5 Volts for full output |
|
Input Impedance: |
120,000 Ohms |
|
Frequency Response: |
+/- 1dB from 10 Hz to 110,000 Hz |
|
Total Harmonic Distortion: |
< 0.4% |
|
Signal-to-Noise Ratio: |
-95 dB below 1 Watt |
|
Damping Factor: |
16 |
|
Power Consumption: |
300 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per monoblock): |
2 x KT150
2 x 6SN7
|
|
Dimensions (per monoblock): |
12.5" W x 20" D x 8.25" H |
|
Net Weight (per monoblock): |
50 lbs. |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
