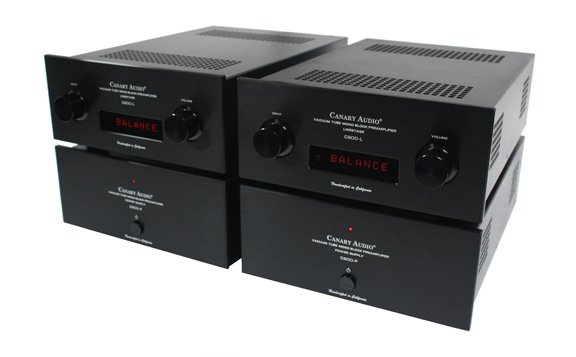

C900 Dual Mono Preamplifier |
|
(Discontinued)
|
| |
|
Dual Mono, Fourteen Vacuum Tube Design:
|
The C900 is our flagship preamplifier featuring the use of fourteen vacuum tubes. Dual mono four chassis
design (left and right channel fully seperated) with matching external power supplies. Balanced input
and output are provided to insure optimum performance with fine quality source components. Standard
with remote volume control and input selection.
Delivers high transparency, wide dynamics soundstage, and three-dimensional imaging, the
C900 is simply the finest preamplifier one could desire. |
| |
|
|
C900 Preamplifier Features: |
| |
Dual mono (left and right channel seperated) line stages featuring (6) 6SN7 vacuum tubes.
Matching external power supplies featuring (2) 5AR4, (4) 6V6 and (2) 6SL7 vacuum tubes.
Rectifier with double choke filtering (two chokes are employed).
Custom EI power transformers.

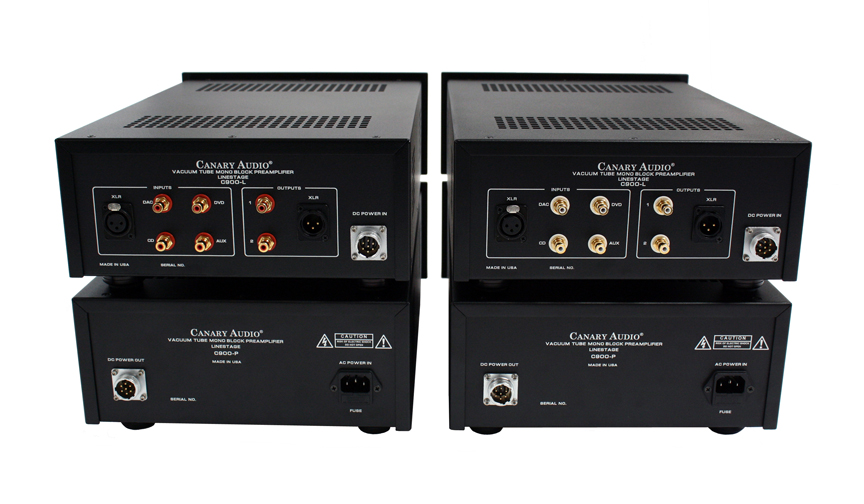

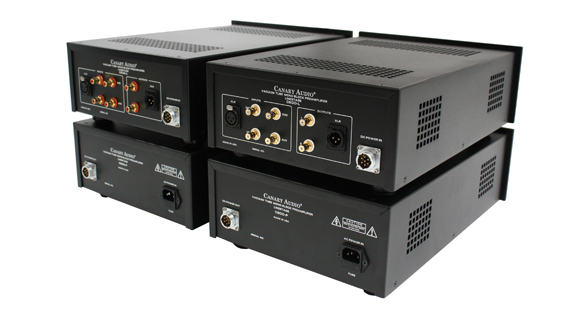

One pair of XLR balanced input and four pairs of RCA single-ended inputs.
One pair of XLR balanced output and two pairs of RCA single-ended outputs.
120-step discrete relay attenuator for volume control.
Large, easy-to-read dot matrix LED front panel display.
All aluminum full function remote control.
|
| |
Specifications
|
|
Input Impedance: |
40,000 Ohms min,110,000 Ohms max |
|
Output Impedance: |
1,200 Ohms |
|
Maximum Gain: |
10.6 dB |
|
Frequency Response: |
+/- 1 dB from 5 Hz to 125,000 Hz |
|
Hum and Noise: |
-72 dB |
|
Maximum Output Voltage before Clipping: |
45 Volts |
|
Total Harmonic Distortion: |
< 0.01% |
|
Power Consumption: |
78 Watts (true RMS) |
|
Tube Complement for C900-L (per channel): |
3 x 6SN7 |
|
Tube Complement for C900-P (per channel): |
1 x 5AR4
1 x 6SL7
2 x 6V6 |
|
Dimensions: |
C900-L (per channel): 11.75" W x 17.5" D x 5.5" H
C900-P (per channel): 11.75" W x 16.5" D x 5.5"H |
|
Net Weight: |
C900-L (per channel): 18 lbs
C900-P (per channel): 28 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
