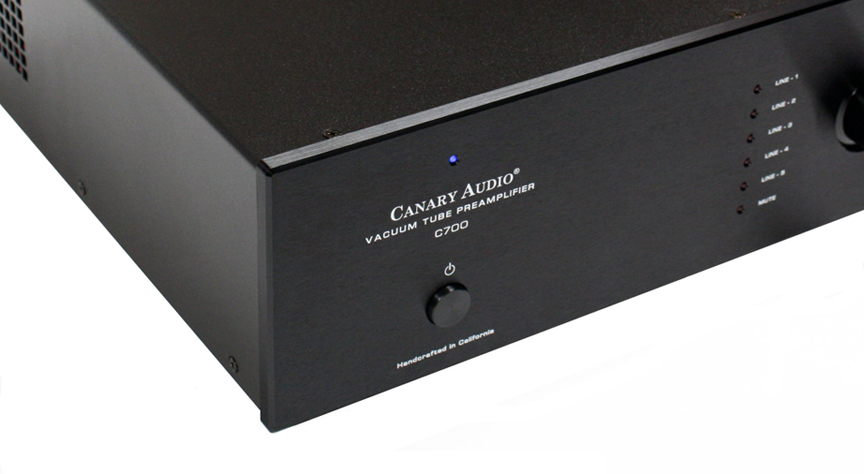

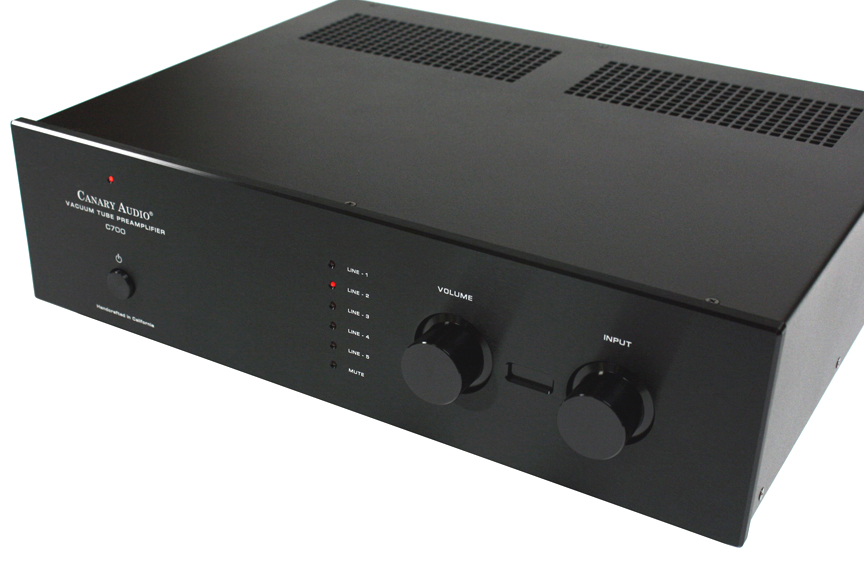

C700 Preamplifier |
| |
The C700 stereo preamplifier employs an advanced circuitry and high quality components to provide outstanding
musical reproduction of your favorite music.
Like our other products, the C700 is engineered and built to provide a lifetime of musical enjoyment.
The circuitry components used in the C700 are carefully chosen and hand soldered on the military grade epoxy circuit
boards. |
| |
|
|
C700 Amplifier Features: |
| |
Rectifier with choke filtering.
Custom EI power transformer.

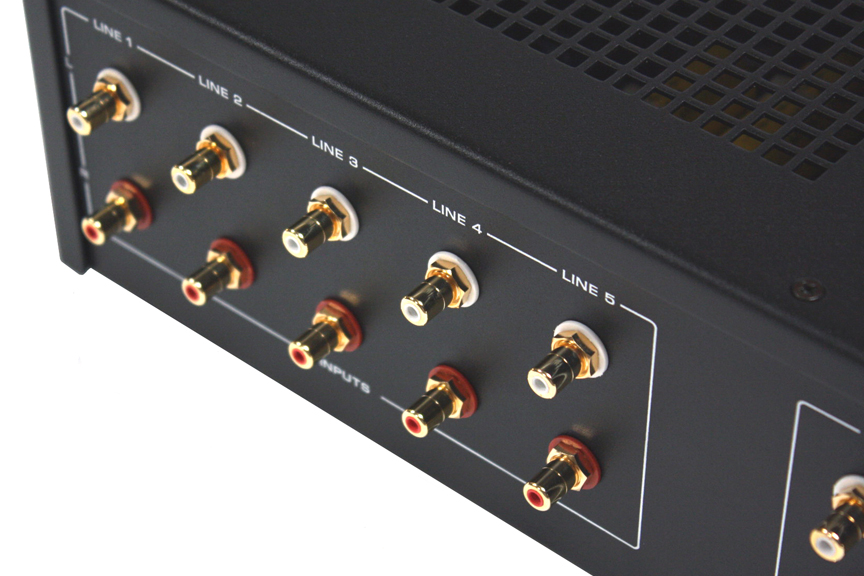

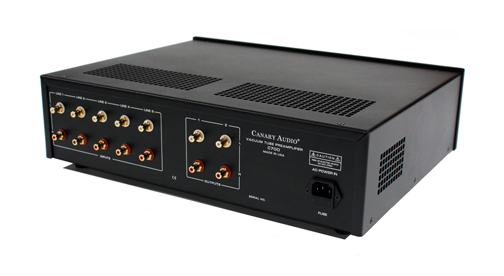

Five pair of RCA single-ended inputs and two pairs of RCA single-ended outputs.
120-step discrete relay attenuator for volume control with muting function.

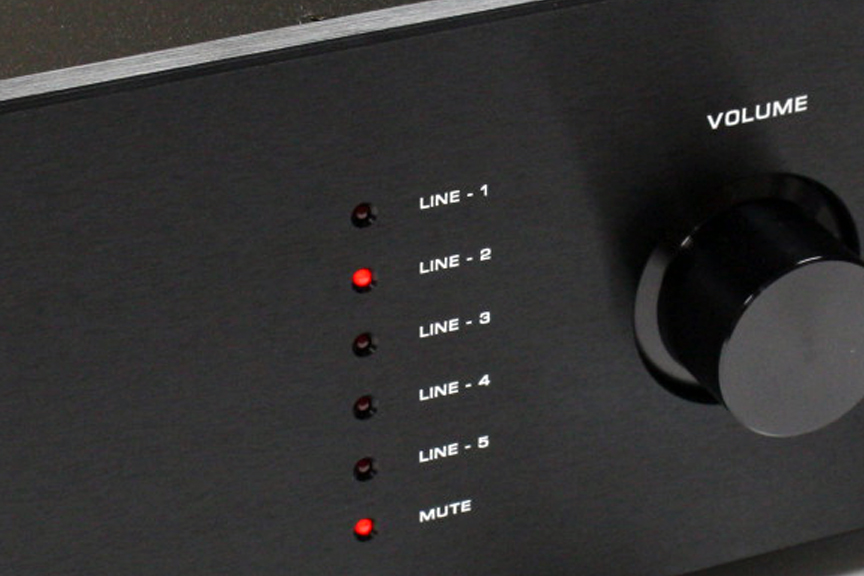

LED input selection indicators.
All aluminum full function remote control.
|
Specifications
|
|
Input Impedance: |
70,000 Ohms min,100,000 Ohms max |
|
Output Impedance: |
1,400 Ohms |
|
Maximum Gain: |
16 dB |
|
Frequency Response: |
+/- 1 dB from 10 Hz to 55,000 Hz |
|
Hum and Noise: |
-90 dB |
|
Maximum Output Voltage before Clipping: |
20 Volts |
|
Total Harmonic Distortion: |
< 0.04% |
|
Power Consumption: |
40 Watts (true RMS) |
|
Tube Complement: |
1 x 5AR4,
2 x 6V6,
2 x 12AU7,
3 x 12AX7 |
|
Dimensions: |
19" W x 16" D x 5.5" H |
|
Net Weight: |
34 lbs. |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
