Specifications
|
Input Impedance: |
40,000 Ohms min,115,000 Ohms max |
Output Impedance: |
1,250 Ohms |
Maximum Gain: |
10 dB |
Frequency Response: |
+/- 1 dB from 5 Hz to 125,000 Hz |
Hum and Noise: |
-75 dB |
Maximum Output Voltage before Clipping: |
45 Volts |
Total Harmonic Distortion: |
< 0.01% |
Power Consumption: |
75 Watts (true RMS) |
Tube Complement - Line Stage:
(per each channel) |
1 x 12AU7
1 x 12AX7 |
Tube Complement - Power Supply:
(per each channel) |
1 x GZ34
1 x 6SL7
2 x 6V6 |
Dimensions - Line Stage:
(per each channel) |
11.75" W x 15.5" D x 5.5" H |

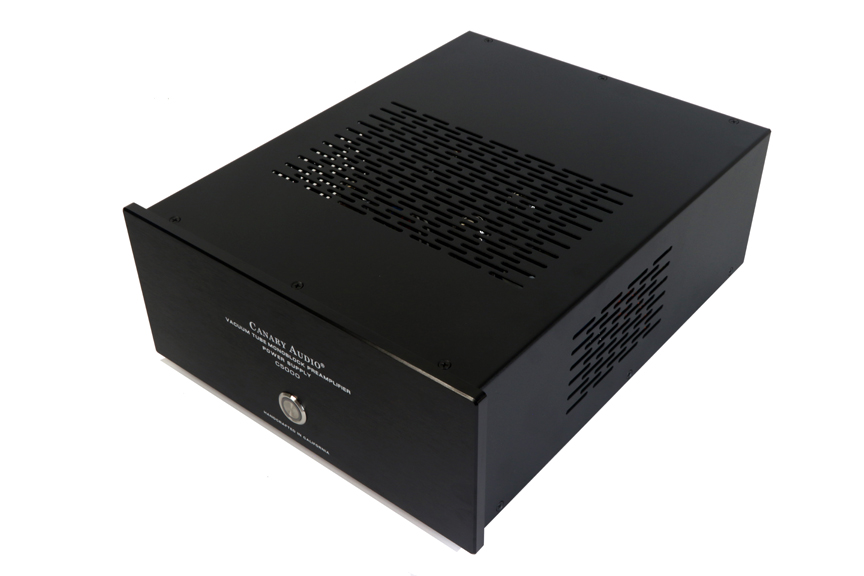

Dimensions - Power Supply:
(per each channel) |
11.75" W x 14.5" D x 5.5" H |
Net Weight - Line Stage:
(per each channel) |
20 lbs |
Net Weight - Power Supply:
(per each channel) |
28 lbs |
