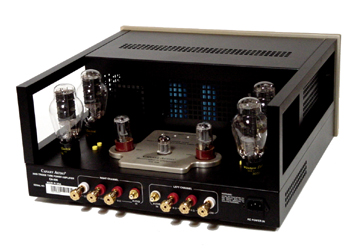

CA-306 Stereo Power Amplifier
|
|
(Discontinued)
|
| |
| Built Around 300B Triode Tubes: |
|
The CA-306 is a stereo power amplifier in push-pull triode configuration with 300B output tubes. It features a newly design circuitry that could provide 24 watts of subtly textured music. Only highest quality parts and components are used in critical applications and Hovland MusiCaps® are used in key circuit locations. The oversize custom wound output and power transformers are specially designed to extend the bass and highs. An independent, choke filtered high voltage supplies is used for each channel. Just as important, the military grade epoxy circuit boards are designed to minimize component interaction.
|
| |
| Sonic Beauty of Push-Pull Triode: |
|
With an output power rated at 24 big triode watts, the CA-306 should work well with a variety of speaker systems and you will never feel the lack of power and loudness for any kind of music listening. And the best part of it, you are still enjoying the magical sweetness of sound that only 300B triodes can bring you. If you want the sonic beauty of triode sound, the CA-306 is the power amp for you.
|
| |
|
| Specifications for CA-306
|
|
Rated Power Output: |
24 Watts RMS |
|
Input Sensitivity: |
0.33 Volts for full output |
|
Input Impedance: |
100,000 Ohms |
|
Frequency Response: |
+/- 3dB from 10 Hz to 60,000 Hz |
|
Total Harmonic Distortion: |
< 0.5% |
|
Signal-to-Noise Ratio: |
-82 dB below 1 Watt |
|
Damping Factor: |
10 |
|
Power Consumption: |
220 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement: |
4 x 300B
2 x 6SN7GTB
1 x 12AX7 |
|
Dimensions: |
19" W x 19" D x 9" H |
|
Net Weight: |
75 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Specifications subject to change without notice. |
|
