REFERENCE TWO
Mono Blocks Power Amplifier
|
| |
|
The Best of the Best:
|
|
Canary Audio is proud to introduce the all new Reference Two Mono Block amplifier, the first of a whole new series of
high end reference audio products. This amplifier is the result of over 15 years of experience.
|
| |
|
Built to Withstand the Power of Music:
|
|

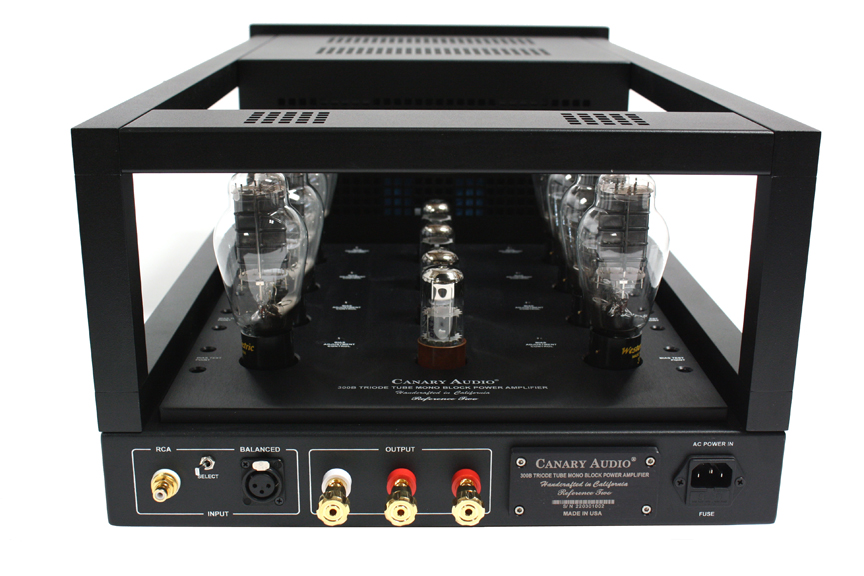

The REFERENCE TWO is a mono blocks amplifier with the use or sixteen
(eight matched pairs) 300B triode tubes in a push pull parallel circuit. Like all of
our other amplifiers, only the highest quality parts and components are used. The oversize custom wound power and output transformers
are specially designed to extend the bass and highs. Each of the transformers is housed in a metal can filled with epoxy.
Two independent chokes are employed for rectifier filtering on each channel.
Just as important, the military grade epoxy
circuit boards are designed to minimize component interaction. In addition to that, each of
the 300B triode tube has a separate bias adjustment device mounted on the rear panel for convenient biasing.
|
| |
|
The World Most Powerful 300B amplifier:
|
|
Generating power from eight pieces / four matched pairs of 300B tubes per channel.
Conservatively rated with an output voltage of 80 watts RMS. The Reference Two mono blocks
amplifier is capable to deliver high power wattages and still maintains the clarity and
delicacy of real music. Anyone who listens to them never feels the need for more wattage,
all they want to do is put on more music. Perhaps the Reference Two is the most powerful
300B amplifier in the world.
|
|
Special Features:
Newly designed high voltage power supply.
The input circuit has been redesigned to be faster and more dynamic.
Balance Input is available for balanced connection.
Exclusive machined Delrin 300B tube sockets with gold plated pin
receptacles.

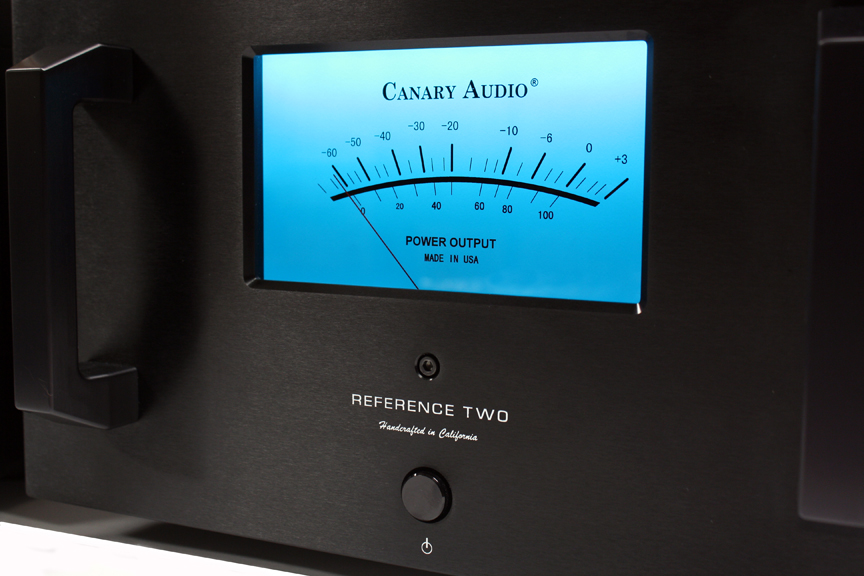

Specially designed power meter with a custom backlite LED display.
|
Specifications
|
|
Rated Power Output: |
80 Watts RMS |
|
Input Sensitivity: |
0.53 Volts for full output |
|
Input Impedance: |
470,000 Ohms |
|
Frequency Response: |
+/- 1 dB from 8 Hz to 80,000 Hz |
|
Total Harmonic Distortion: |
10W output: <0.07%
50W output: <0.18%
80W output: <1.0% |
|
Signal-to-Noise Ratio: |
-100 dB below 80 Watts |
|
Damping Factor: |
16 |
|
Power Consumption: |
380 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per channel): |
8 x 300B
3 x 6SN7GTB
1 x 6SL7 |
|
Dimensions (per channel): |
17" W x 30.5" D x 11" H |
|
Net Weight (per channel): |
150 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Manufacturer's Suggested Retail Price: |
$34,995 (300B Tube Not Included) |
|
Specifications subject to change without notice. |
|
