MC10 MC Phono Preamplifier

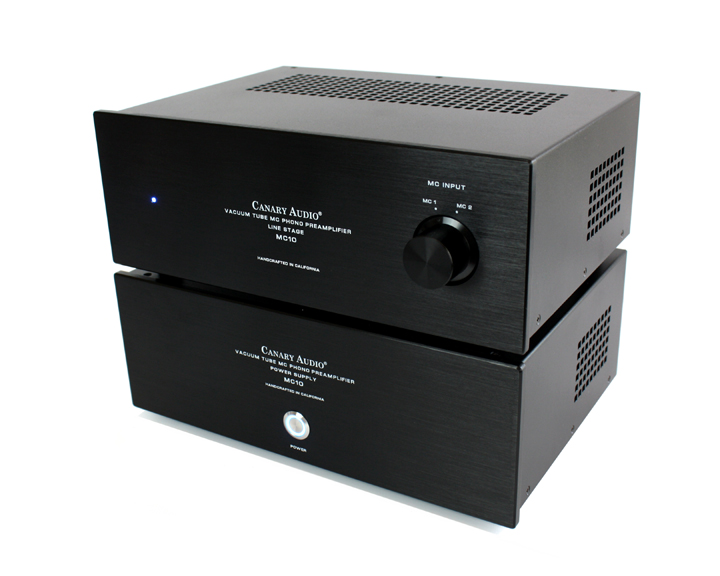

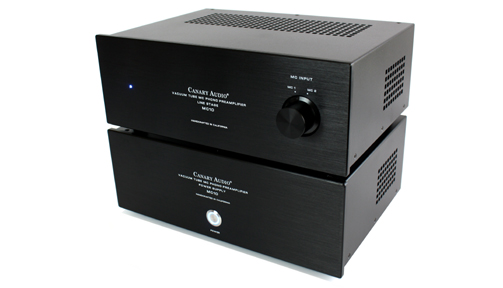

The MC10 employs an advanced circuitry with highest quality components to provide the extra gain stage and RIAA equalization circuitry that are required for highly accurate and low-noise reproduction of the low level output of a phonograph cartridge. Two chassis design with matching external power supply to further minimize overall noise specifically to magnetic field interferences generated by the power transformer.



The massive Power Supply utilizing three carefully selected vacuum tubes (1 x 5AR4, 1 x 6V6 and 1 x 6SL7) incorporated with a well thought out design with substantial energy storage and high inherent regulation.

The Line Stage utilizing four 12AX7 vacuum tubes and each tube is shielded to minimize interference and to reduce microphonics. Two Sweden Lundahl step-up transformers are used in the MC gain section to provide high gain with ultra low noise that guarantees a very quiet background. Another key feature is the use of Amtrans AMRG premium carbon film resistors (with gold-plated leads) along with other premium grade components throughout the circuit to achieve exceptional RIAA accuracy. On top of that, two pair of MC inputs are available for turntable with dual tonearm.

MC10 Special Features:

  • Newly designed circuitry guarantees ultra low noise and hum free operation.

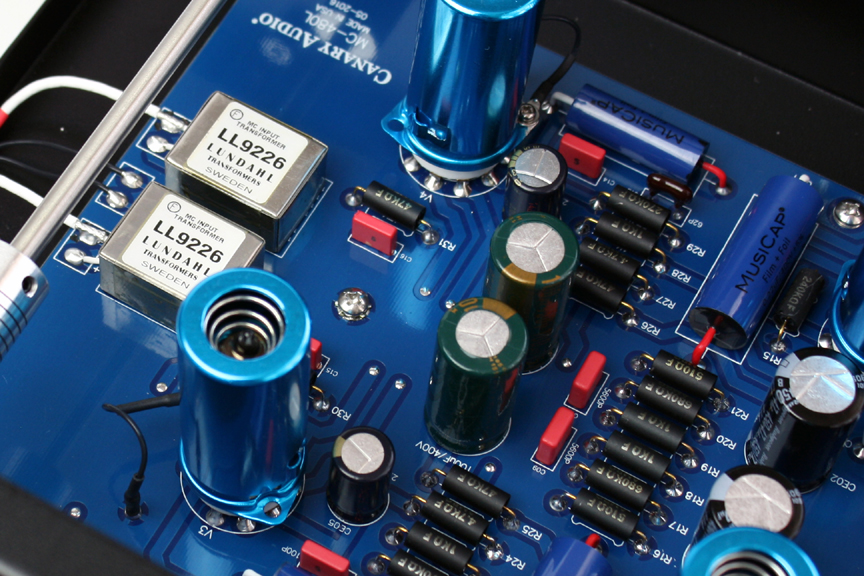

  • Dual Sweden Lundahl step-up transformers are used in the MC gain section.

  • Amtrans AMRG premium carbon film resistors (with gold-plated leads) were used in the line stage.

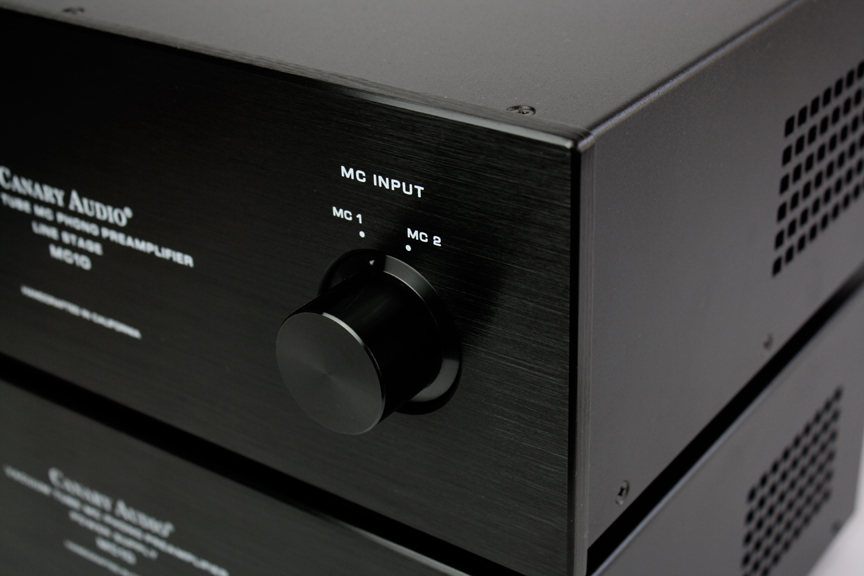

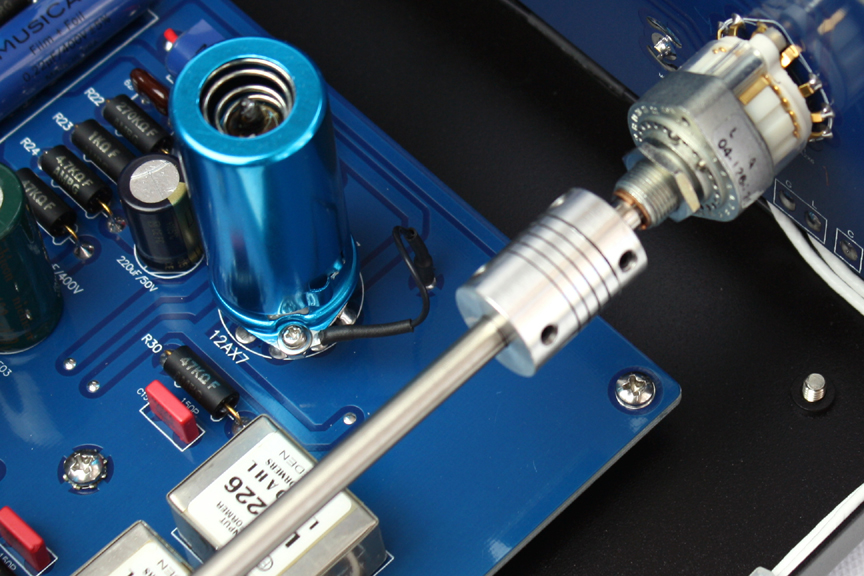

  • Swiss made ELMA selector switches with gold-plated contacts for precise input selection.

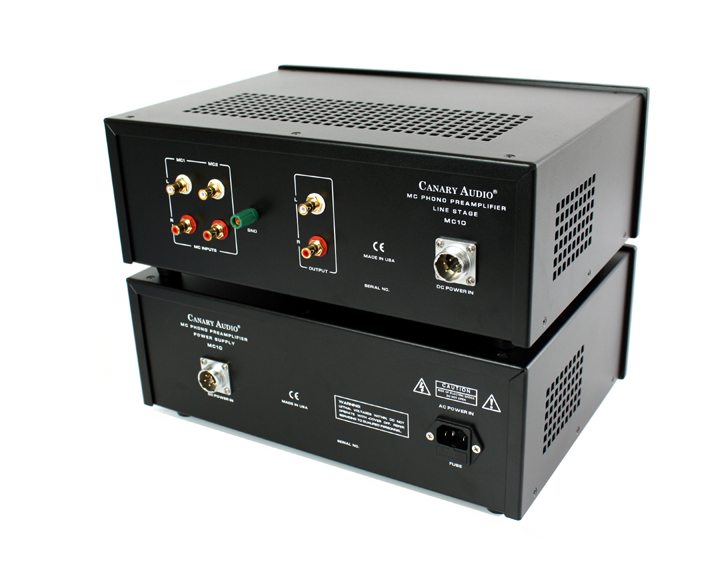

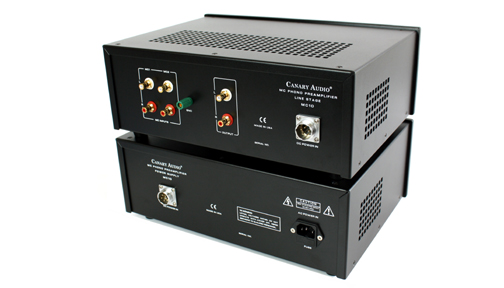

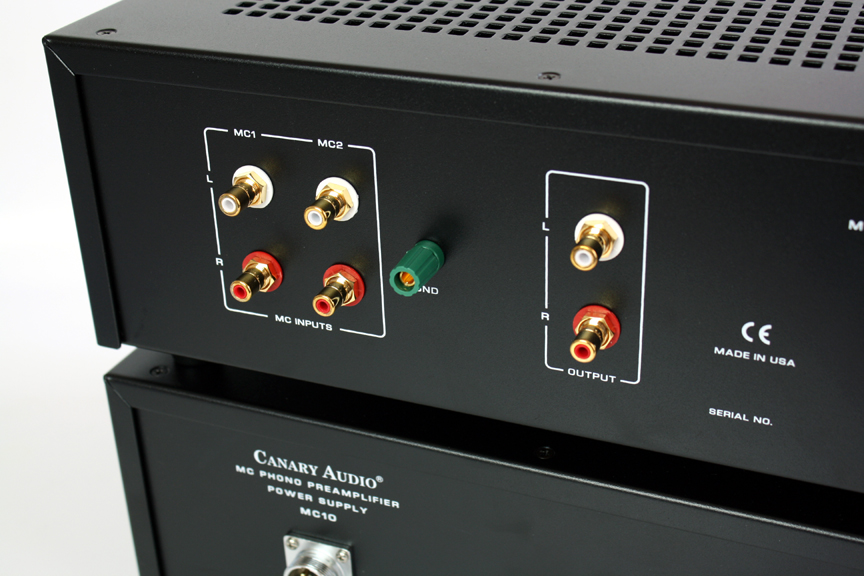

  • Two pairs of MC input are available for turntable with dual tonearm.

  • All tube circuitry with high accuracy RIAA equalization.



  • Image Gallery



    Specifications

    Input Impedance - MC: 100 Ohms
    Gain at 1 kHz: 69.5 dB
    Frequency Response: +/- 0.25 dB from 20 Hz to 22,000 Hz (RIAA Equalized)
    THD: <0.03% at 0.5V RMS 1kHz output
    Signal to Noise Ratio: 80 dB, A weighted
    Tube Complement - Line Stage: Line Stage: 4 x 12AX7
    Tube Complement - Power Supply: 1 x 5AR4, 1 x 6SL7, 1 x 6V6
    Dimensions: 14.5" W x 11.50" D x 5.5" H (Line Stage)
    14.5" W x 10.25" D x 5.5" H (Power Supply)
    Net Weight: 14 lbs. (Line Stage)
    18 lbs. (Power Supply)
    Warranty: 3 Years Parts and Labor

    Specifications subject to change without notice.
