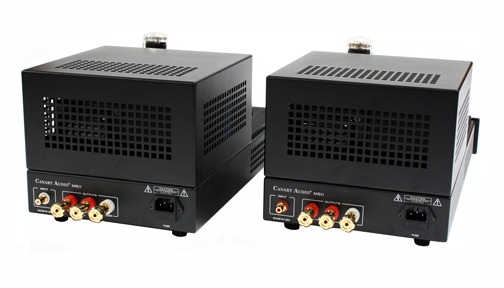

M80 Mono Blocks Power Amplifier
|
| |
|
Single-Ended:
|
|
We at Canary understand that some people are enchanted with single-ended amplifiers. Although
our push-pull amplifiers have been very well received by many audio enthusiasts, we did not
want those single-ended lovers think that Canary had turned its tail feathers down on them.
We finally decided to build a pair of mono block amplifiers around the 300B triode tubes in a
single-ended circuit. |
| |
|
American Craftsmanship: |
|
When building the M80 mono blocks power amplifier, we used the highest quality parts and
components that we could ever find. Executed and assembled the design with the best traditions
of American craftsmanship. In addition to that, the M80 is auto biasing. There is no need
to ever worry about biasing the amplifiers. Listen to the M80 and experience what
single-ended is meant to be.
|
| |
|
Special Features:
Newly designed high voltage power supply.
An independent, choke filtered high voltage supply is used for each channel. .
Custom EI power transformers.
Exclusive machined Delrin 300B tube sockets with gold plated pin receptacles.
Custom made gold plated binding posts.
|
Specifications
|
|
Rated Power Output: |
8 Watts RMS |
|
Input Sensitivity: |
1.2 Volts for full output |
|
Input Impedance: |
100,000 Ohms |
|
Frequency Response: |
+/- 3dB from 10 Hz to 54,000 Hz |
|
Total Harmonic Distortion: |
< 0.2% |
|
Signal-to-Noise Ratio: |
-90 dB below 1 Watt |
|
Damping Factor: |
3 |
|
Power Consumption: |
105 Watts (true RMS) |
|
Output Impedance: |
4, 8 Ohm |
|
Tube Complement (per channel): |
1 x 300B
2 x 6SN7
1 x 5U4G |
|
Dimensions (per channel): |
9" W x 19" D x 8" H |
|
Net Weight (per channel): |
38 lbs |
|
Warranty: |
3 Years Parts and Labor |
|
Manufacturer's Suggested Retail Price: |
$5,845 (300B Tube Not Included) |
|
Specifications subject to change without notice. |
|
