C800MK-II Two Chassis Preamplifier

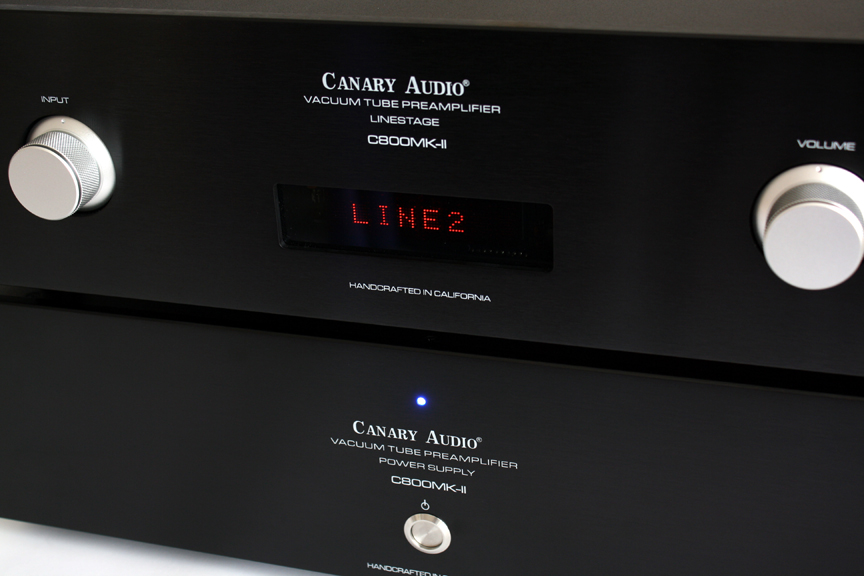

Two Chassis Design:

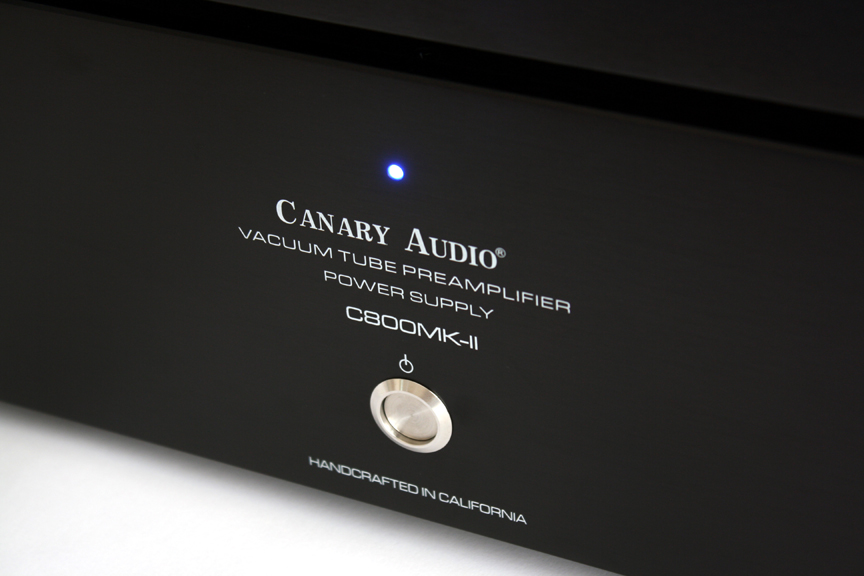

The C800MK-II stereo preamplifier employs an advanced circuitry and high quality components to provide outstanding musical reproduction of your favorite music. Featuring an external power supply in a separate chassis to avoid undesirable electro-magnetic interference with the line stage.

Like our other products, the C800MK-II is engineered and built to provide a lifetime of musical enjoyment. The circuitry components used in the C800MK-II are carefully chosen and hand soldered on the military grade epoxy circuit boards. Even the DC power cable used to connect the line stage with the power supply was hand built by our engineers to meet our standard.

C800MK-II Special Features:

  • Two chassis design with external power supply.

  • Line stage featuring (4) military grade 6SN7 vacuum tubes.

  • Matching external power supplly featuring (1) GZ34, (2) 6V6 and (1) 6SL7 vacuum tubes.

  • Rectifier with double choke filtering (two chokes are employed).

  • Custom EI power transformer.

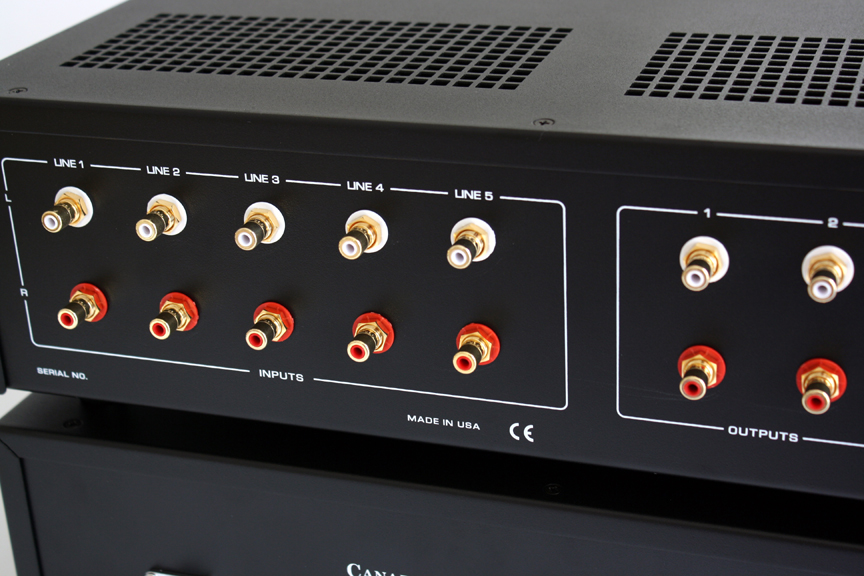

  • Five pair of RCA single-ended inputs and two pairs of RCA single-ended outputs.

  • 120-step discrete relay attenuator for volume control.

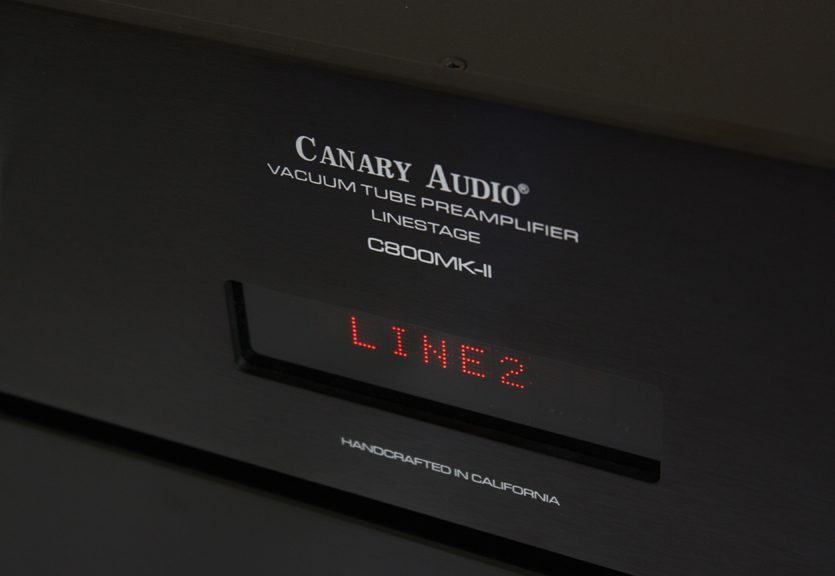

  • Large, easy-to-read dot matrix LED front panel display.

  • All aluminum full function remote control.



  • Image Gallery


    SPECIFICATIONS

    Input Impedance: 50,000 Ohms min,100,000 Ohms max
    Output Impedance: 1,200 Ohms
    Maximum Gain: 10.6 dB
    Frequency Response: +/- 1 dB from 5 Hz to 118,000 Hz
    Hum and Noise: -72 dB
    Maximum Output Voltage before Clipping: 45 Volts
    Total Harmonic Distortion: < 0.01%
    Power Consumption: 65 Watts (true RMS)
    Tube Complement (Line Stage): 4 x 6SN7
    Tube Complement (Power Supply): 1 x GZ34
    2 x 6V6
    1 x 6SL7
    Dimensions: 18.75" W x 14" D x 5.5" H (Line Stage)
    18.75" W x 13" D x 5.5" H (Power Supply)
    Net Weight: 26 lbs (Line Stage)
    32 lbs (Power Supply)
    Warranty: 3 Years Parts and Labor

    Specifications subject to change without notice.
