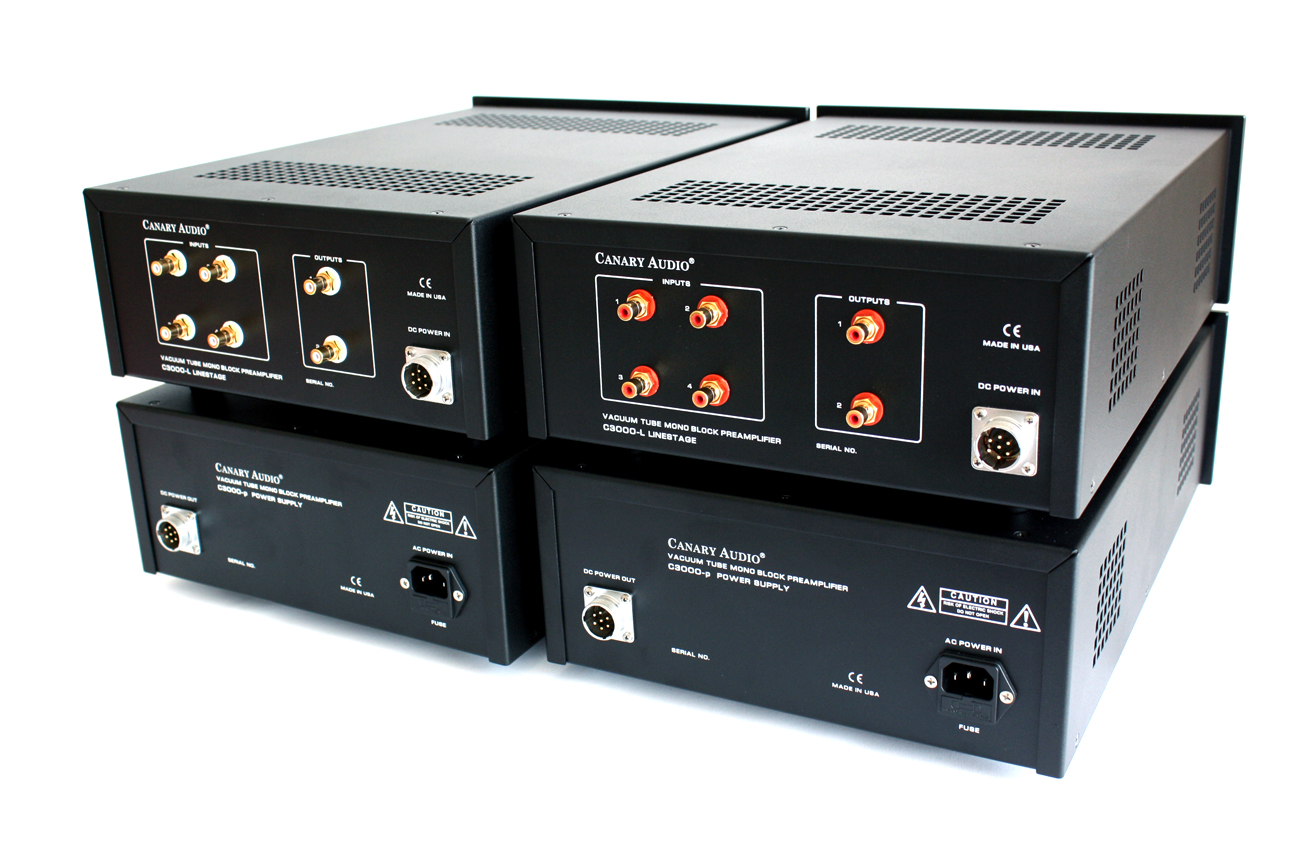

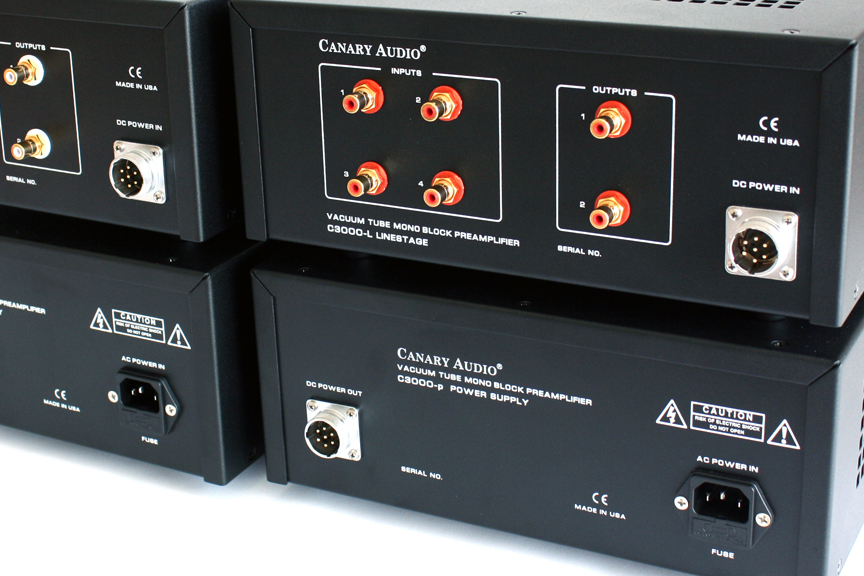

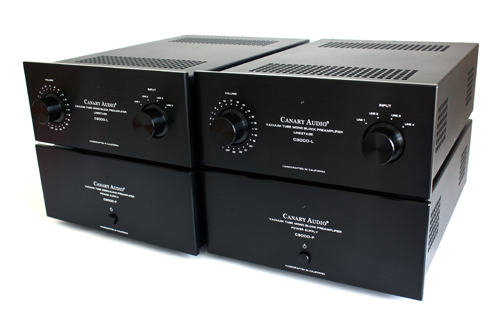

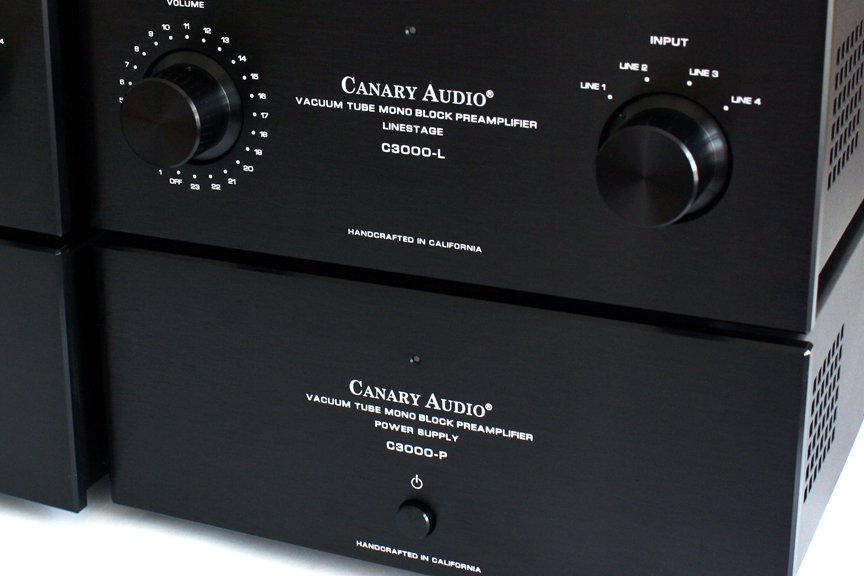

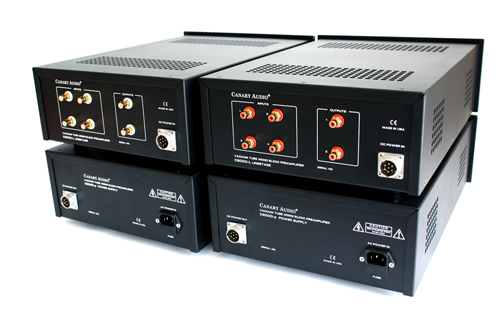

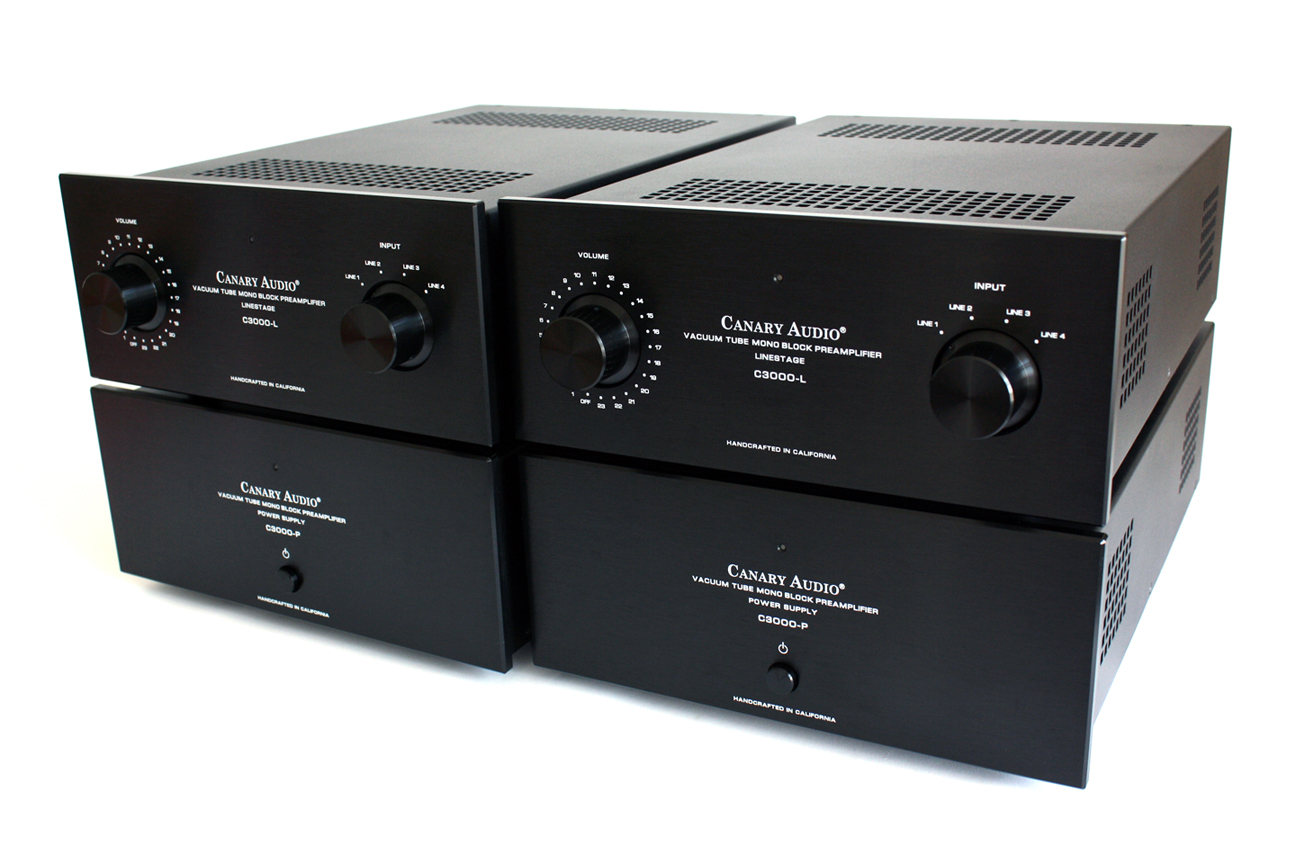

C3000 Four Chassis Mono Block Preamplifier


C3000 Mono Block Preamplifier

The Best of the Best:

The C3000 is our newest reference grade preamplifier featuring the use of twelve vacuum tubes. Luxurious Dual Mono four chassis design (left and right channel fully seperated) with matching external power supplies further guarantees interference-free performance.

The C3000 is specially designed for pure high-end audiophiles who want nothing but the best. With the use of highest quality parts and components, the C3000 is simply The Best preamplifier that we have ever built.

Special Features:

  • Dual mono (left and right channel seperated) line stages featuring (4) 6SN7 vacuum tubes.

  • Matching external power supplies featuring (2) GZ34, (4) 6V6 and (2) 6SL7 vacuum tubes.

  • Rectifier with double choke filtering (two chokes are employed).

  • Custom EI power transformers.

  • Swiss made ELMA selector switches with gold-plated contacts.

  • Hand built Swiss made ELMA stepped attenuators with carbon film resistors.

  • Amtrans AMRG premium carbon film resistors with gold-plated leads.

  • Four pairs of single-ended inputs and two pairs of outputs are installed for ease of connectivity.


    •

    Image Gallery


    Specifications

    Input Impedance: 40,000 Ohms min,115,000 Ohms max
    Output Impedance: 1,250 Ohms
    Maximum Gain: 9.8 dB
    Frequency Response: +/- 1 dB from 5 Hz to 125,000 Hz
    Hum and Noise: -75 dB
    Maximum Output Voltage before Clipping: 45 Volts
    Total Harmonic Distortion: < 0.01%
    Power Consumption: 78 Watts (true RMS)
    Tube Complement for C3000-L:
    (per each channel)    		 2 x 6SN7
    Tube Complement for C3000-P:
    (per each channel)    		 1 x GZ34
    1 x 6SL7
    2 x 6V6
    Dimensions: (per each channel) C3000-L: 11.75" W x 17.5" D x 5.5" H
    C3000-P: 11.75" W x 16.5" D x 5.5" H
    Net Weight: (per each channel) C3000-L: 20 lbs
    C3000-P: 27 lbs
    Warranty: 3 Years Parts and Labor

    Specifications subject to change without notice.
