Products C1000 Four Chassis Dual Mono Preamplifier



C1000 Dual Mono Preamplifier

Dual Mono, Four Chassis Design:

The C1000 is the successor of our legendary C900 preamplifier featuring the use of twelve vacuum tubes. Dual mono four chassis design (left and right channel fully separated) with matching external power supplies. Balanced input and output are provided to insure optimum performance with fine quality source components. Standard with remote volume control and input selection.

The re-designed line stage with the use of carefully selected 6SN7 vacuum tubes guarantees a low noise operation. The modified power supply eliminates any power line noise and the redistribution of power supply noise.

Delivers high transparency, wide dynamics soundstage, and three-dimensional imaging, the C1000 is simply the finest preamplifier one could desire.

Special Features:

  • Low noise dual mono (left and right channel separated) line stages featuring (4) 6SN7 vacuum tubes.

  • Matching external power supplies featuring (2) GZ34, (4) 6V6 and (2) 6SL7 vacuum tubes.

  • Rectifier with double choke filtering (two chokes are employed).

  • Custom EI power transformers.

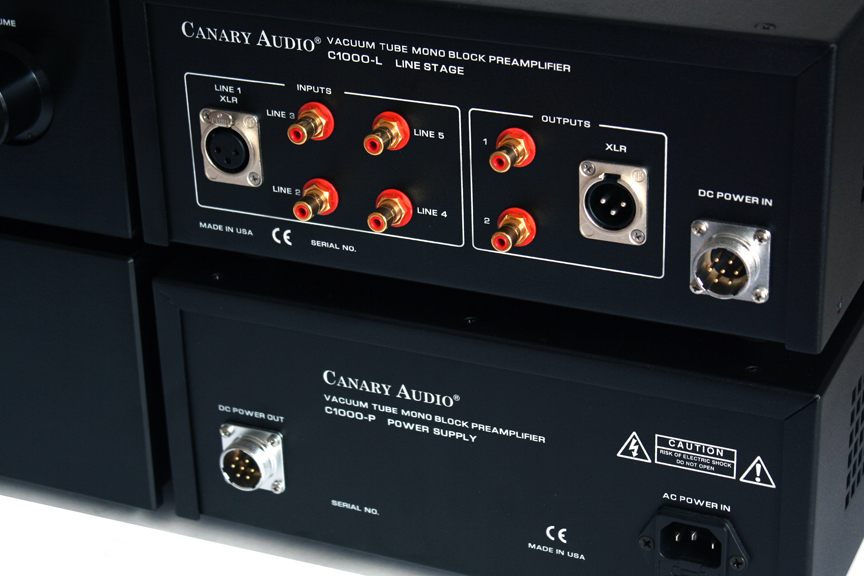

  • One pair of XLR balanced input and four pairs of RCA single-ended inputs.

  • One pair of XLR balanced output and two pairs of RCA single-ended outputs.

  • 120-step discrete relay attenuator for volume control.

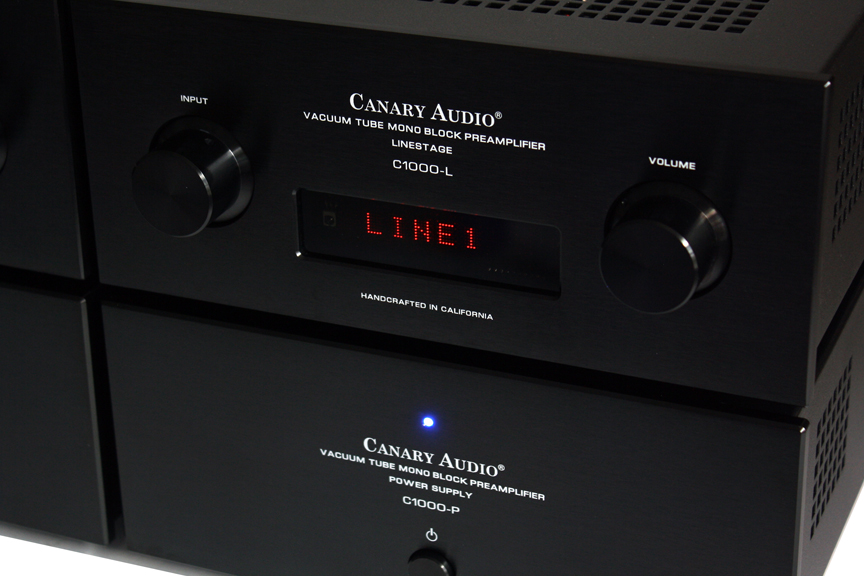

  • Large, easy-to-read dot matrix LED front panel display.

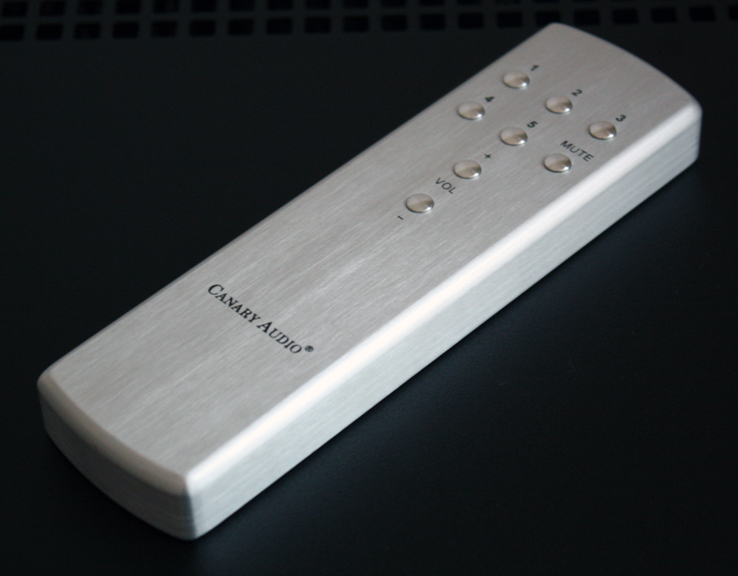

  • All aluminum full function remote control.


  •

    Image Gallery



    SPECIFICATIONS

    Input Impedance: 40,000 Ohms min,110,000 Ohms max
    Output Impedance: 1,200 Ohms
    Maximum Gain: 10.6 dB
    Frequency Response: +/- 1 dB from 5 Hz to 125,000 Hz
    Hum and Noise: -72 dB
    Maximum Output Voltage before Clipping: 45 Volts
    Total Harmonic Distortion: < 0.01%
    Power Consumption: 78 Watts (true RMS)
    Tube Complement for C1000-L (per channel): 2 x 6SN7
    Tube Complement for C1000-P (per channel): 1 x GZ34
    1 x 6SL7
    2 x 6V6
    Dimensions (per channel): C1000-L: 11.75" W x 18" D x 5.5" H
    C1000-P: 11.75" W x 16.75" D x 5.5" H
    Net Weight (per channel): C1000-L: 18 lbs
    C1000-P: 28 lbs
    Warranty: 3 Years Parts and Labor

    Specifications subject to change without notice.
